DPC Support Closer parapet wall 2.4m

DPC Support Closer parapet wall 2.4m

Cavity Trays Limited
Read description

From£21.88 ex VAT£26.26 inc VAT

Notify meCheckout

Item has been added to your basket

Select options to see a delivery estimate
Delivery estimate In Stock
See delivery terms for this product
Collections are not available
View WishlistAdd to Wishlist
Free delivery on orders over £500 (ex VAT)
Select options to see a delivery estimate
Delivery estimate In Stock
See delivery terms for this product
Collections are not available
All Cavity Trays Limited productsAll Pitched Roof Accessories
Ask a question, we're here to help
Product code:
Brand: Cavity Trays Limited
Product info

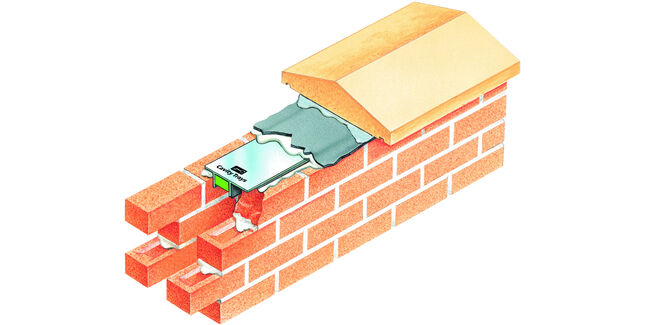

Parapet construction requires a DPC immediately under the coping. BS5628:Part 3 qualifies the manner in which the DPC must be supported. The Type J closer fulfils the requirements of the British Standard, and also the N.H.B.C. performance standard, chapter 6.1, S4 (c) to (d). The conventional cavity parapet is normally terminated with copings, under which a DPC is bedded and positioned. The width of the DPC must be sufficient to slightly overhang the width of the parapet masonry. Support of the DPC is required where it crosses the cavity.

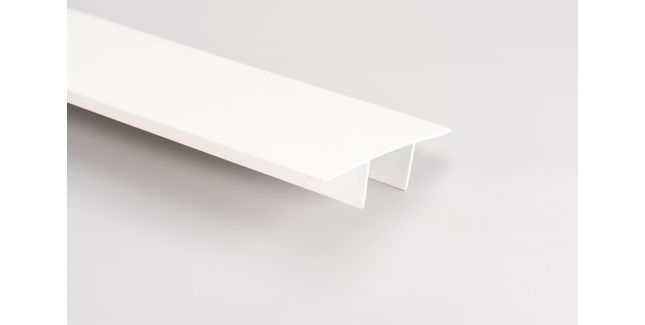

  • Standard lengths 2400mm.(applies to both standard and large)
  • J1 (standard) closer make it suitable for use in cavities from 50mm up to and including 90mm.
  • J2 (Large) is a larger closer suitable for use in cavities from 90mm up to and including 100mm.
  • J3 is a bespoke closer suitable for use in cavities up to and including 130mm, we would need dimensions to quote (Please enquire). You can find the product here.
  • Material PVCU, Type 4 (Type J1 & J2 only)
  • Material Type J3 bespoke - Polypropylene.
  • Available with insulated infil of K-value 0.037 W/mºC.

Non-standard preformed cavity trays are available, Cavity Trays can design and manufacture bespoke requirements. Non-standard trays maybe required in areas of buildings where complicated junctions are encountered. Please contact Roof Giant with your drawings and quantity required.
