Manthorpe GDRH Roll-Out Dry Fix Hip Tile Roofing System - 6m
Manthorpe GDRH Roll-Out Dry Fix Hip Tile Roofing System - 6m additional 1Manthorpe GDRH Roll-Out Dry Fix Hip Tile Roofing System - 6m additional 2Manthorpe GDRH Roll-Out Dry Fix Hip Tile Roofing System - 6m additional 3Manthorpe GDRH Roll-Out Dry Fix Hip Tile Roofing System - 6m additional 4
Next
Previous

Manthorpe GDRH Roll-Out Dry Fix Hip Tile Roofing System - 6m

Manthorpe Building Products
Read description

From£65.10 ex VAT£78.12 inc VAT

Notify meCheckout

Item has been added to your basket

Select options to see a delivery estimate
Delivery estimate 2-3 working days
See delivery terms for this product
Collections are not available
View WishlistAdd to Wishlist
Free delivery on orders over £325 (ex VAT)
Select options to see a delivery estimate
Delivery estimate 2-3 working days
See delivery terms for this product
Collections are not available
All Manthorpe Building Products productsAll Dry Ridge Systems
Ask a question, we're here to help
Product code:
Brand: Manthorpe Building Products
Product info

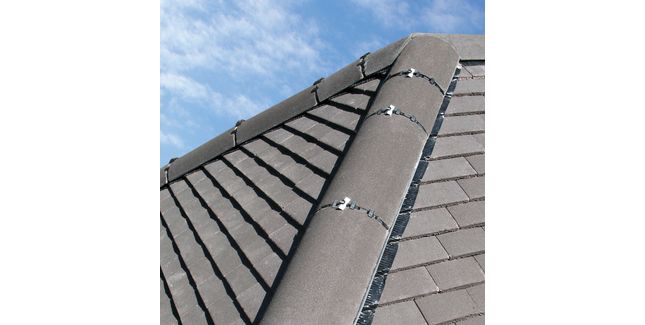

The Manthorpe Roll-Out Dry Hip System is a fast, clean and straightforward method for fixing hip tiles securely to your roof without requiring any difficult or laborious work. Compatible with most concrete and clay hip tiles, once installed, the easy to fit mechanical fixings prevent tiles from lifting in high winds and stop driving rain from getting in beneath the roofing.

Fitting Requirements: Tile up to the edge of the hip in the normal manner, build up timber battens on top of the hip board as required depending on the roof covering. Roll out the vent roll along the hip, remove the adhesive backing and press down to seal it to the roof, dressing the corrugations down into any profiles. Lay the hip support trays over the roll, overlapping each by 100mm. Using the screws provided, mount the lower end of the first hip tile in place, securing the other with a union. Continue fixing the hip tiles with unions at the joint. Mitre and screw the ridge/hip junction, sealing with a lead saddle and sealant.

  • One box supplies enough components for a 6m hip length
  • Compatible with most makes of concrete and clay hip tiles
  • Can be fitted to the hip of most roof pitches (pitches must be within tile manufacturers recommendations for the tile type being used)
  • The system is compatible with most slate, concrete flat and profiled tiles
  • Provides a 5,000mm²/m ventilation into the roof space
  • Independently tested to conform with the requirements of BS 8612.

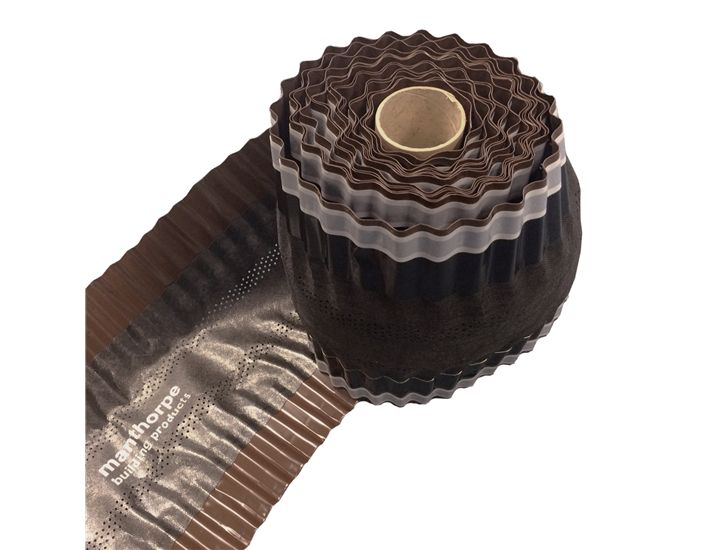

  • Size information: 6m vent roll & 1.1m Hip Support Tray
  • Roll material: Vented membrane with an aluminium flashing

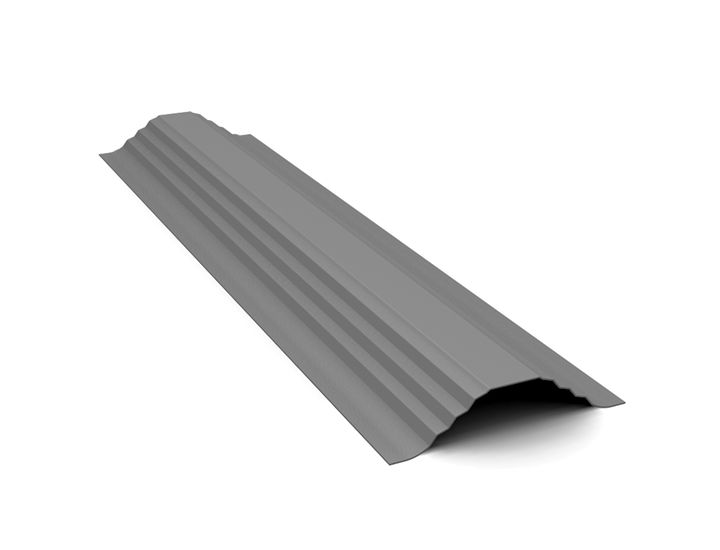

  • Support Tray material: Extruded PVC

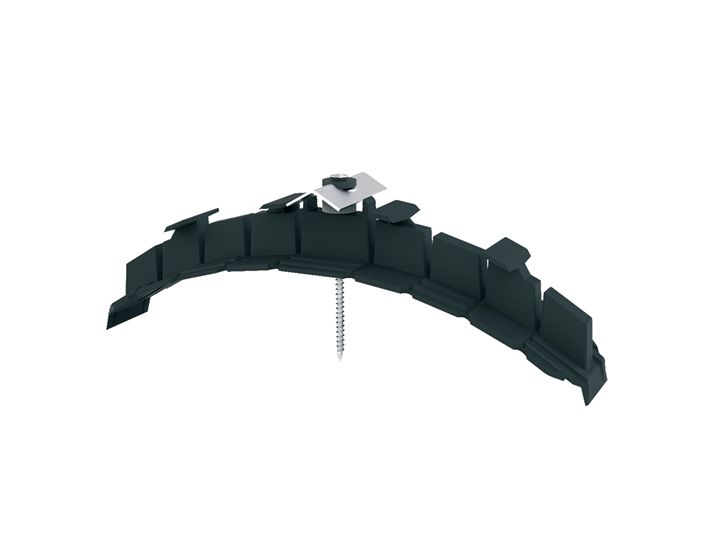

  • Unions material: UV stable polypropylene
  • Colours: Black and Dark Brown
  • Quantity Information: 6m Vent Roll: 1 per box and 1.1m Hip Support Tray: 6 per box and Tile Ridge Unions: 13 per box

This product is non-returnable, please ensure you order the correct product.

Product Datasheet
Fitting Instructions
