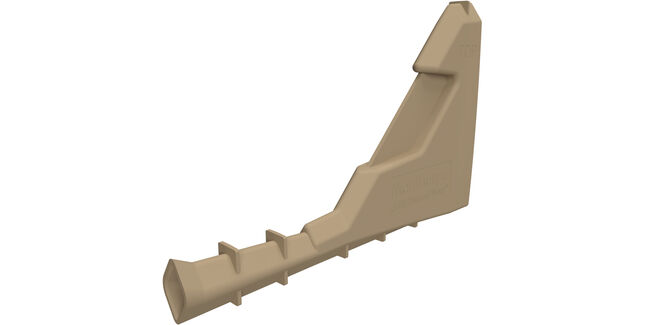

Manthorpe Diamond Weep - 65mm (Box of 100)
Manthorpe Diamond Weep - 65mm (Box of 100) additional 1Manthorpe Diamond Weep - 65mm (Box of 100) additional 2Manthorpe Diamond Weep - 65mm (Box of 100) additional 3Manthorpe Diamond Weep - 65mm (Box of 100) additional 4Manthorpe Diamond Weep - 65mm (Box of 100) additional 5Manthorpe Diamond Weep - 65mm (Box of 100) additional 6Manthorpe Diamond Weep - 65mm (Box of 100) additional 7Manthorpe Diamond Weep - 65mm (Box of 100) additional 8Manthorpe Diamond Weep - 65mm (Box of 100) additional 9Manthorpe Diamond Weep - 65mm (Box of 100) additional 10Manthorpe Diamond Weep - 65mm (Box of 100) additional 11
Next
Previous

Manthorpe Diamond Weep - 65mm (Box of 100)

Manthorpe Building Products
Read description

From£33.75 ex VAT£40.50 inc VAT

Notify meCheckout

Item has been added to your basket

Select options to see a delivery estimate
Delivery estimate 2-3 working days
See delivery terms for this product
Collections are not available
View WishlistAdd to Wishlist
Free delivery on orders over £325 (ex VAT)
Select options to see a delivery estimate
Delivery estimate 2-3 working days
See delivery terms for this product
Collections are not available
All Manthorpe Building Products productsAll Cavity & Underfloor Ventilators
Ask a question, we're here to help
Product code:
Brand: Manthorpe Building Products
Product info

The unique diamond shape profile helps to increase the drainage flow rate along the base of the channel promoting self-cleaning and removal of debris build-up. Ribs along the angled outer walls also create a more robust mortar key within the perp end to ensure a secure fit within the outer leaf construction.

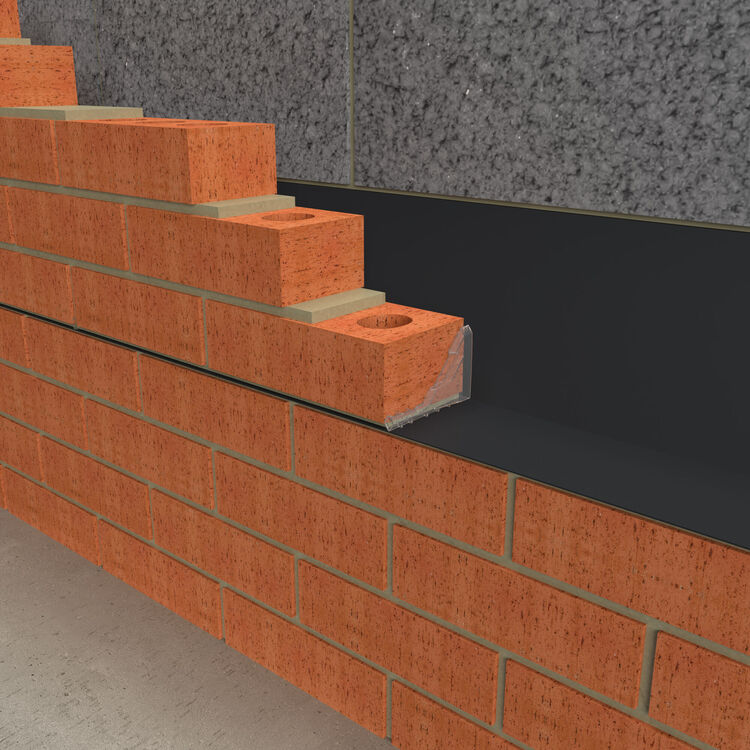

The face of the diamond-shaped outlet finishes flush with the brickwork for quick detailing into the mortar joints, with the tapering outlet designed for easy cleaning. The rear opening of the weep stands 65mm high, the full height of the perpend joint, as per the guidance of NHBC Technical Extra 17 ensuring an optimum drainage inlet from within the cavity.

The profile of the weep also features a minimum opening point of 4mm which is ample for water drainage but small enough to prevent the entry of large insects. The Diamond Weep is available in clear and in a range of colours to match various wall and mortar finishes.

  • Unique diamond-shaped weep profile
  • Drainage flow increased to promote self-cleaning
  • Finishes flush with brickwork for quicker detailing
  • Upper and lower ribs create a robust mortar key
  • Tapering outlet designed for easier cleaning
  • Rear opening stands full height of the perp joint
  • 4mm opening prevents entry of large insects

Specification:

  • : 9.5 x 65 x 102mm
  • : 0.70kg
  • : Polypropylene
  • : Injection Moulded
  • Yes

This product is non-returnable, please ensure you order the correct product.

Data Sheet
