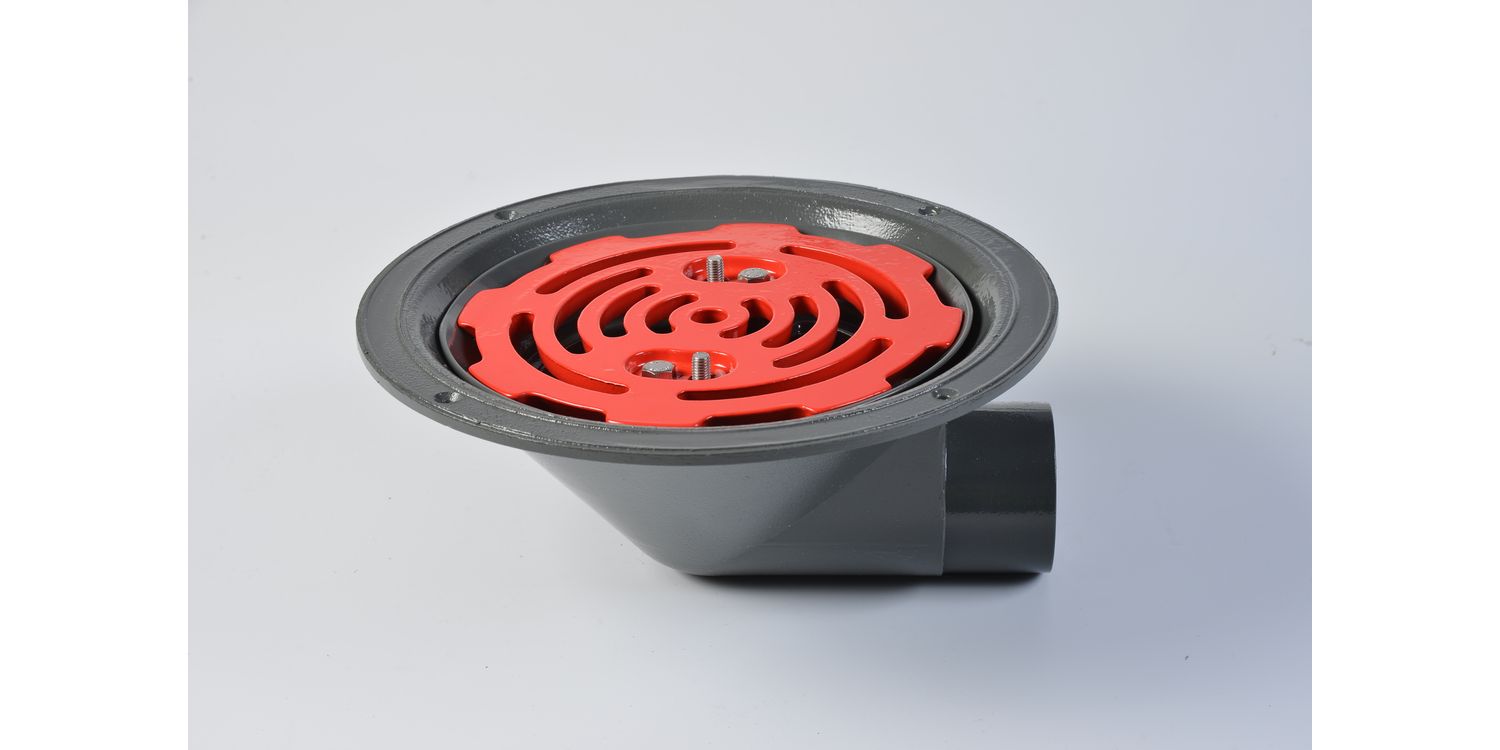

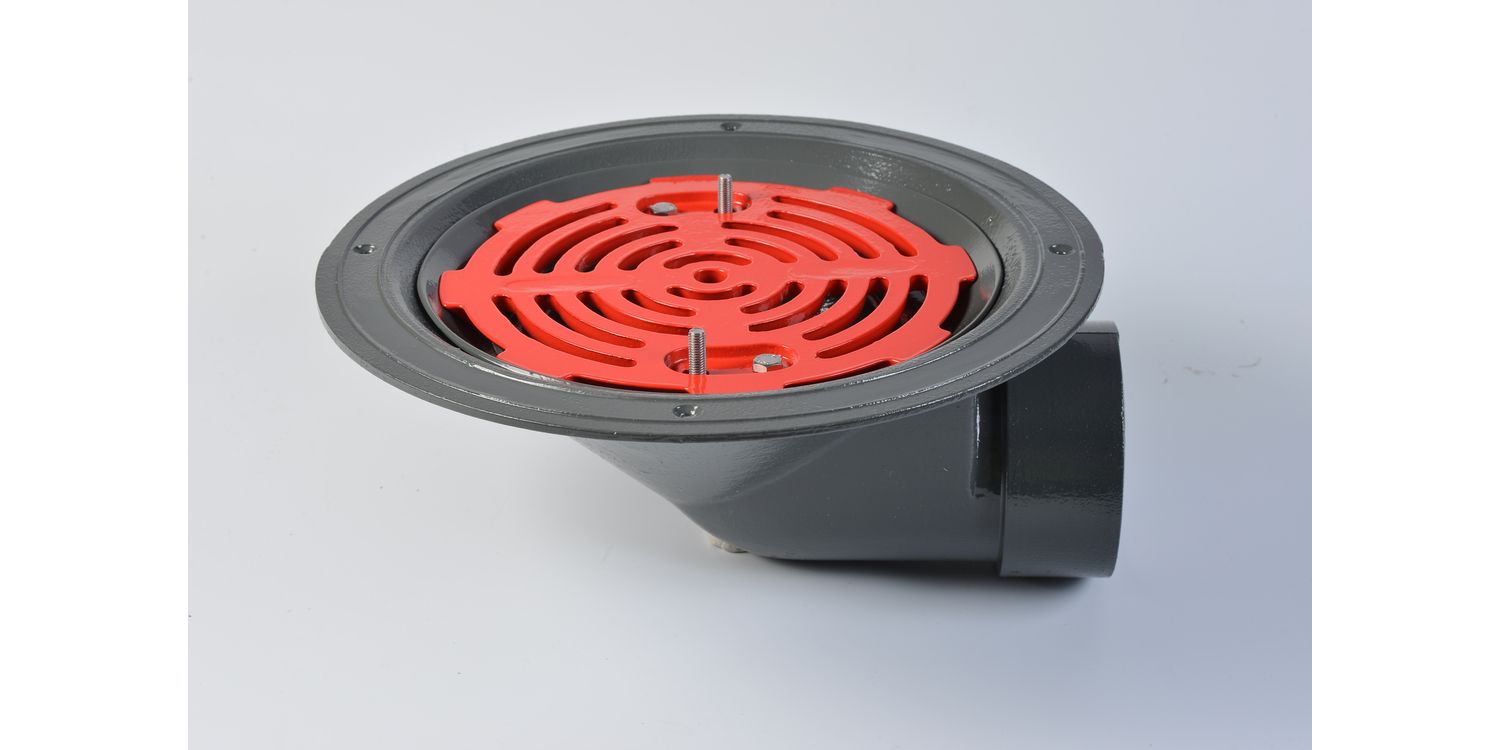

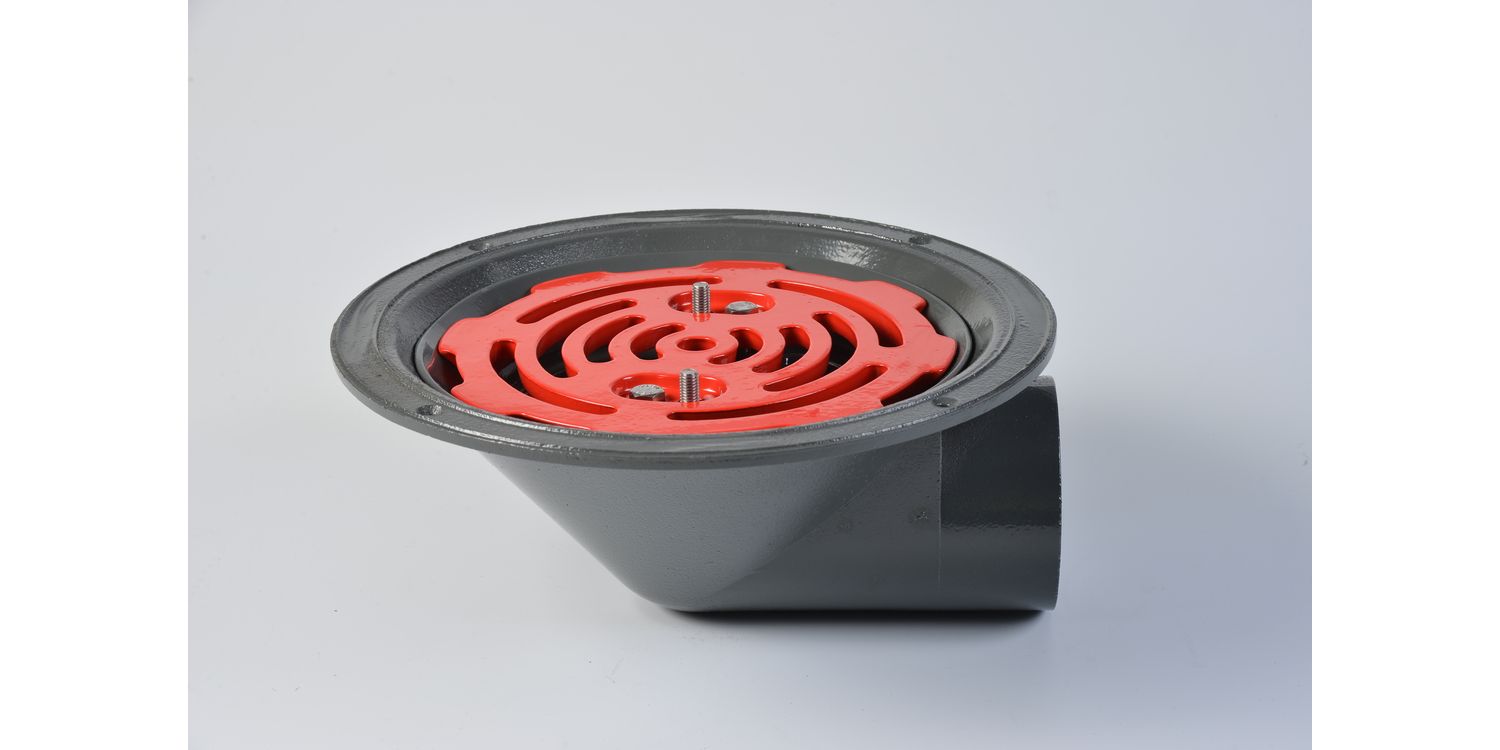

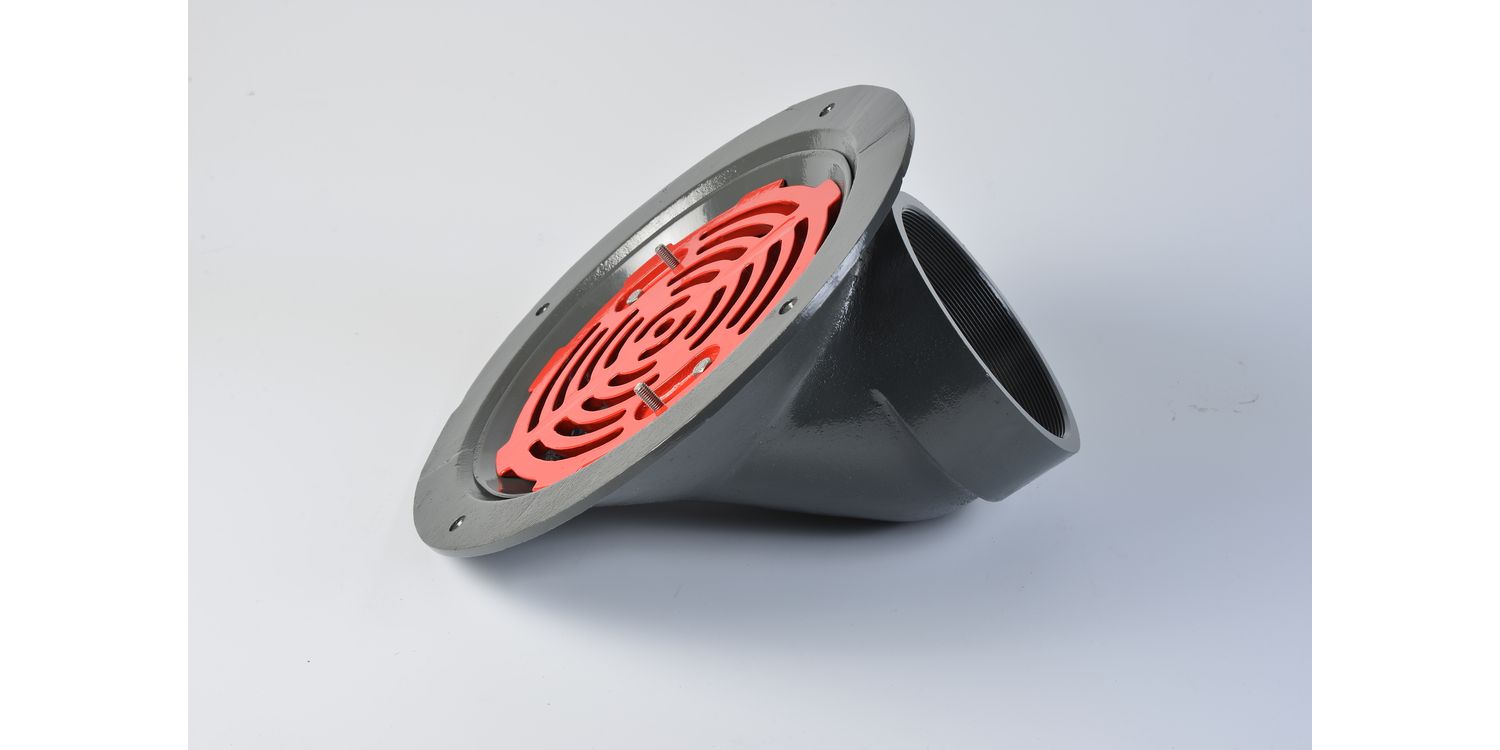

ACO HP 90° Screw Aluminium Roof Outlet with Flat Grate
ACO HP 90° Screw Aluminium Roof Outlet with Flat Grate additional 1ACO HP 90° Screw Aluminium Roof Outlet with Flat Grate additional 2ACO HP 90° Screw Aluminium Roof Outlet with Flat Grate additional 3ACO HP 90° Screw Aluminium Roof Outlet with Flat Grate additional 4ACO HP 90° Screw Aluminium Roof Outlet with Flat Grate additional 5ACO HP 90° Screw Aluminium Roof Outlet with Flat Grate additional 6
Next
Previous

From£172.09 ex VAT£206.51 inc VAT

Notify meCheckout

Item has been added to your basket

Product info

Manufactured from grade LM6 aluminium silicon alloy to BS EN 1706:2010, this easy to install ACO HP 90° Screw Aluminium Roof Outlet comes with a flat grate and offers reliable rainwater drainage solutions for various applications.

ACO threaded outlets are supplied with a parallel female screw thread to BS 21:1985 for connection to tubes conforming to BS EN 10255:2004 with male taper thread to BS 21:1985. This ensures a completely watertight seal when screwed fully home into the outlet body.

Cost-effective and durable, the ACO Building Drainage range is suitable for use in a variety of commercial, industrial and residential applications and is capable of handling high flow rates to minimise the number of outlets required.

  • Cost-effective and durable
  • Comes with a flat grate
  • Capable of handling high flow rates
  • Secure grating prevents vandalism
  • Suitable for commercial, industrial, residential and high traffic pedestrian areas
  • Material: Grade LM6 aluminium silicon alloy
  • Certified to BS EN 1706:2010
  • 2”, 3”, 4” & 6”outlets
  • Spigot & threaded variants
  • Die-cast aluminium alloy
  • Designed and tested to BS EN 1253
  • Area drained: 82m² (50mm), 198m² (75mm), 389m² (100mm), 624m² (150mm)
  • Flow rate: 1.7l/s (50mm), 4.1l/s (75mm), 8.1l/s (100mm), 13.0l/s (150mm)
  • Weight: 3.30kg (50mm), 3.20kg (75mm), 5.50kg (100mm), 5.00kg (150mm)
  • Pipe Diameter Size: 50mm - Dimensions: 300mm x 260mm x 130mm x 160mm x 2" BSP
  • Pipe Diameter Size: 75mm - Dimensions: 300mm x 260mm x 130mm x 160mm x 3" BSP
  • Pipe Diameter Size: 100mm - Dimensions: 380mm x 310mm x 170mm x 190mm x 4" BSP
  • Pipe Diameter Size: 150mm - Dimensions: 380mm x 310mm x 215mm x 140mm x 6" BSP
