VELUX EDWS FFKF06 2000 3-in-1 Roof Tile Flashing Kit - 188cm x 118cm (With BDX & BFX Collars)

£201.56 ex VAT£241.87 inc VAT

Notify meCheckout

Item has been added to your basket

Product info

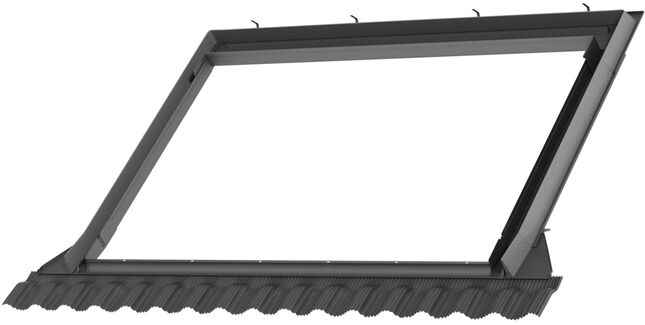

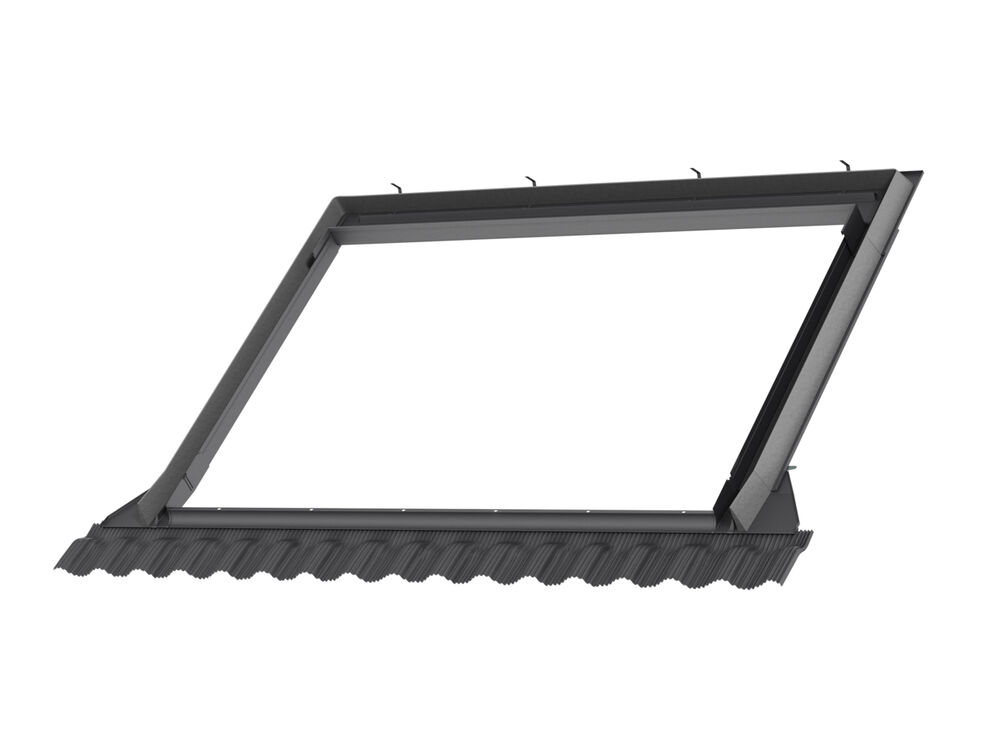

The VELUX EDWS FFKF06 2000 3-in-1 Studio Window Roof Tile Flashing Kit will allow you to create an immaculate built-in roof window installation on a tile roof with a profile up to 120mm. Also suitable for using on thatched roofs and with interlocking slate tiles, the BDX and BFX collar included will guarantee that you get an entirely watertight seal between the roof window and roof covering, while the drainage gutter and vapour barrier come as standard for these collars, providing great rainwater drainage and condensation protection.

Suitable for 15° and 90° degree roof pitches, the bottom flashing section is equipped with a flexible apron, which can be adapted to the profile of the roofing material. This flashing can be used with flat or profiled roofing material with a maximum profile of 120mm, measured from the top of the tile batten to the highest point of the tile.

The VELUX EDWS FFKF06 2000 3-in-1 Tile Flashing Kit comes with bottom frame covers and a bottom flashing section, one top flashing section with foam gasket and tile support, two side sections with foam gaskets, one bottom flashing section with flexible apron and foam gasket, two side frame covers, three bottom frame covers with clips, nails and screws included.

  • Easy to install
  • Suitable for roof pitches of 15° to 90°
  • Suitable for use with the 188cm x 118cm VELUX GGLS FFKF06 3-in-1 Roof Window
  • Height: 188cm x Width 118cm x Thickness (up to) 120mm
  • For flat or profiled roofing materials up to 120mm in profile
  • Also used with thatched roofs and interlocking slate tiles
  • Creates a smart and sleek installation finish
  • Completely watertight with water drainage and vapour barrier protection
  • Durable, weatherproof construction
  • All BDX 2000 variants include: Insulation frame BDX, underfelt collar BFX, drainage gutter and a vapour barrier BBX

The code of your existing VELUX window may differ if it was purchased pre-2014. Please view the Help & Advice tab to see how your old code translates to new codes.

VELUX Window Sizes / Orientation

All VELUX window sizes are listed as width x height. For example, an MK04 window is 78cm wide and 98cm high.

For a visual representation of this, please click here.

VELUX Window Product Codes

The code of your existing VELUX window may differ if it was purchased pre-2014 - these windows generally have a code without the 'K'. To learn how to find your VELUX window code, click here.

And to see how your old code translates to new codes, click here. However, you will need to buy the pre-2014 coded product to match your window.

VELUX Blind Product Codes

VELUX blinds come with side channels which come in two different options. This is reflected in the product code:

  • Product codes ending in ‘S’ - these will have aluminium side channels.
  • Product codes ending in ‘SWL’ - these will have White Line side channels.

Top Hung Windows & Cleaning Mode

Your top hung window may arrive in the Centre Pivot position which is the Cleaning Mode Function, allowing the external pane to be cleaned when the window has been installed. Please click here for instructions on how to switch it to the correct position.

Useful Guides

VELUX ACTIVE

For advice and FAQs on the VELUX ACTIVE system, please visit the VELUX support pages.

VELUX Standard Flashing Kits

Please note that if you are viewing the installation guide for standard flashing kits, part 5 as numbered in the illustration is pre-attached to the window and is not part of the flashing kit. Part 6 comes within its own box that is positioned above the window in the window box.

Other Advice

Further product data and installation guides can be found in the Technical Information area (where applicable).
