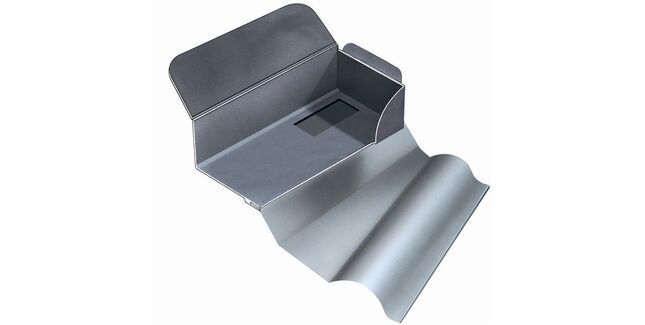

Cavity Trays Type X Long Lead 23.5 Pitch Intermediate Tray - 270mm (Left Hand & Right Hand)

From£14.99 ex VAT£17.99 inc VAT

Notify meCheckout

Item has been added to your basket

Product info

The Type X Long Lead 23.5 Pitch Intermediate Tray from Cavity Trays is the only high performance classified cavitray for gable abutments and comes in Left and Right Hand options. Great for new-build applications, each tray has an end upstand so water can only discharge via the open end of the tray. This product provides you with many advantages in new-build roofing projects and is designed to be built into each course up the rake of the roof. They are able to be used in both traditional and timber frame constructions where the course size is 75mm (standard brickwork coursing).

Made from preformed DPC with an attached ready-shaped flashing, when laid in every course of a cavity wall external skin, against which a sloping roof abuts, Type X trays provide continuous stepped DPC protection running parallel with the slope. Any water and dampness in the exposed masonry skin above this stepped arrangement is prevented from gravitating in a downwards direction below it. Therefore, the masonry skin is wet above the roofline but remains dry where it becomes an internal wall. Trays come handed and, as you view the gable, the left hand trays discharge to the left and the right-hand trays discharge to the right.

Installation: The moulded features on every tray support fast and accurate positioning. The mason is required to set up a chalk line matching the roof pitch and build one tray into every course with its corner on the line. This simplified installation procedure ensures all trays align and are correctly distanced. For further information, please see our Technical Information section.

  • Size: 270mm x 210mm x 150mm
  • 2 options: Left Hand & Right Hand
  • Solid DPC petheleyne, AA
  • Lead flashing BS EN 12588
  • Specify pitch, lead length, handing and whether external skin is brickwork. Water drip bars eliminate underbase track-back
  • Correct mortar bedding depth is also established as bar dimensions harmonise with front of tray section to aid stability and mortar integrity
  • Integral cavitray sealing flap links with upper tray
  • Feature on the tray end upstand arrests horizontal tracking at this vulnerable point

Non-standard preformed cavity trays are available, Cavity Trays can design and manufacture bespoke requirements. Non-standard trays maybe required in areas of buildings where complicated junctions are encountered. Please contact Roof Giant with your drawings and quantity required.
