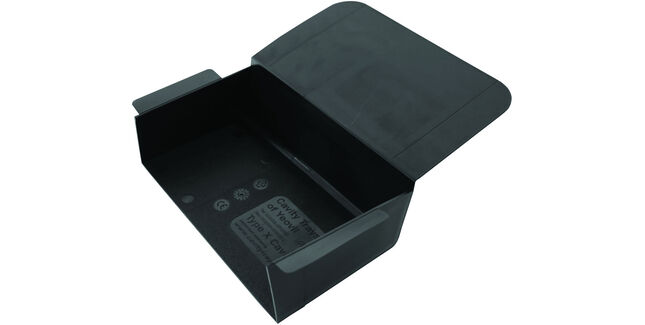

Cavity Tray Advantage Range Unleaded Catchment Tray - 230mm (Left Hand & Right Hand)

From£5.18 ex VAT£6.22 inc VAT

Notify meCheckout

Item has been added to your basket

Product info

The Cavity Tray Advantage Range Unleaded Catchment Tray collects and discharges water via a Caviweep and is designed to be built into the bottom of a roof slope. A crucial damp proofing building essential, this is a preformed cavitray component without an integral lead flashing attached. It may be used as an alternative method of creating the damp course element only, where a sloping roof abuts a cavity masonry wall.

The no-lead Advantage range offers completely unique installation and usage benefits that surpass other generic unleaded cavity tray manufacturers. This is a must-have for installers who want to add their own flashing of choice later on in the process. The Advantage Unleaded Gable Abutment Cavitray is made from moulded DPC with a variable cavity upstand. When these trays are built into an exterior skin, considerations need to be made to receive the flashing to be installed at a later date. This is achieved by raking out the mortar while still green, to leave a 25mm minimum recess under the front of the tray.

Advantage Trays can be supplied with an optional polystyrene strip under each front edge which provides the installer with soft polystyrene to rake-away rather than mortar. This is a preferred method by many tradespeople, as it ensures a freely accessible slot is always available. When flashings are cut and installed, we recommend individual flashings are fitted under each tray and all flashings overlap sufficiently to provide adequate weathering protection. Trays are designed for use in standard 75mm (brickwork) courses.

Applications: Traditional constructions, timber frame constructions, new work, retrofit and remedial projects. More suitable for regular shaped finishes when considering masonry skin styles and minimal undulations in the masonry faces.

  • Size: 230mm x 190mm x 150mm
  • Available in Left and Right Hand options
  • Colour: Black
  • Solid DPC polypropylene, AB
  • CFC: CFC Free
  • ODP: Zero
  • Specify pitch, handing and coursing size
  • Pitches from 17.5 degrees upwards
  • Cavity width adjustment from 50mm up to 140mm
  • Trays are designed for use in standard 75mm (brickwork) courses
  • Use: Cavitray to provide stepped DPC presence within wall only

Non-standard preformed cavity trays are available, Cavity Trays can design and manufacture bespoke requirements. Non-standard trays maybe required in areas of buildings where complicated junctions are encountered. Please contact Roof Giant with your drawings and quantity required.
